System v0.1 — space-claim model

Axis-aligned envelope claims with mass, generated by CadQuery from parameters/*.yaml. Not detailed parts — this stage locks layout, clearances, mass and CoG before any detail design.

Mass & centre of gravity (stowed)

14,570 kg

total mass

limit 26,000 kg (ISO 40ft rating)

6836 mm

CoG x (0.56 of length)

window 0.35–0.65 · PASS

1103 mm

CoG y (width 2438)

near-centred

1235 mm

CoG z (height)

limit 1400 mm · PASS

Rendered geometry (the gated assembly itself, not an illustration)

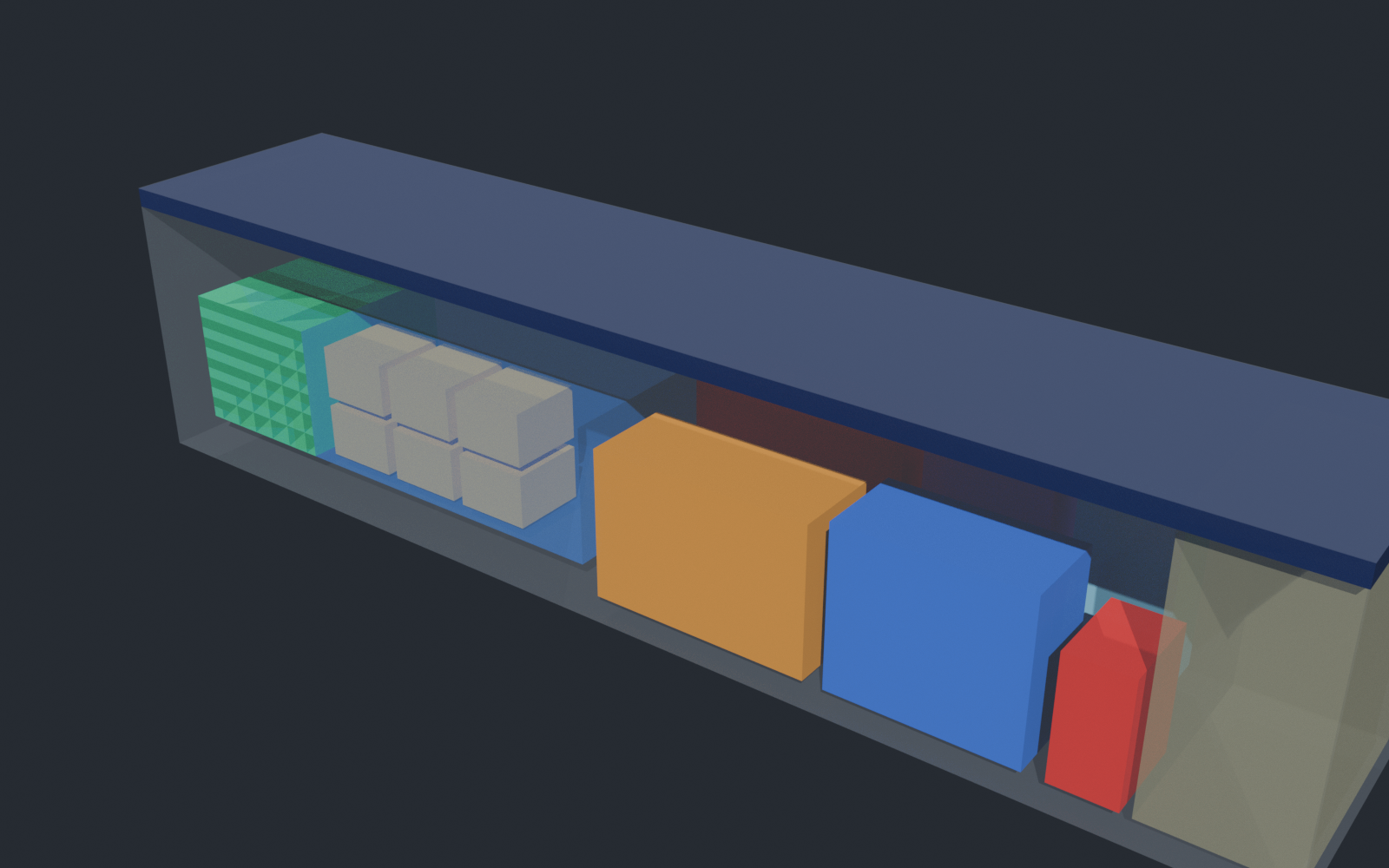

stowed isometric — Stowed — transport state, solar flat on roof

deployed isometric — Deployed — solar wings out at awning height 2 000 mm

stowed floor plan — Floor plan (roof + solar hidden) — colors keyed to the zone table below

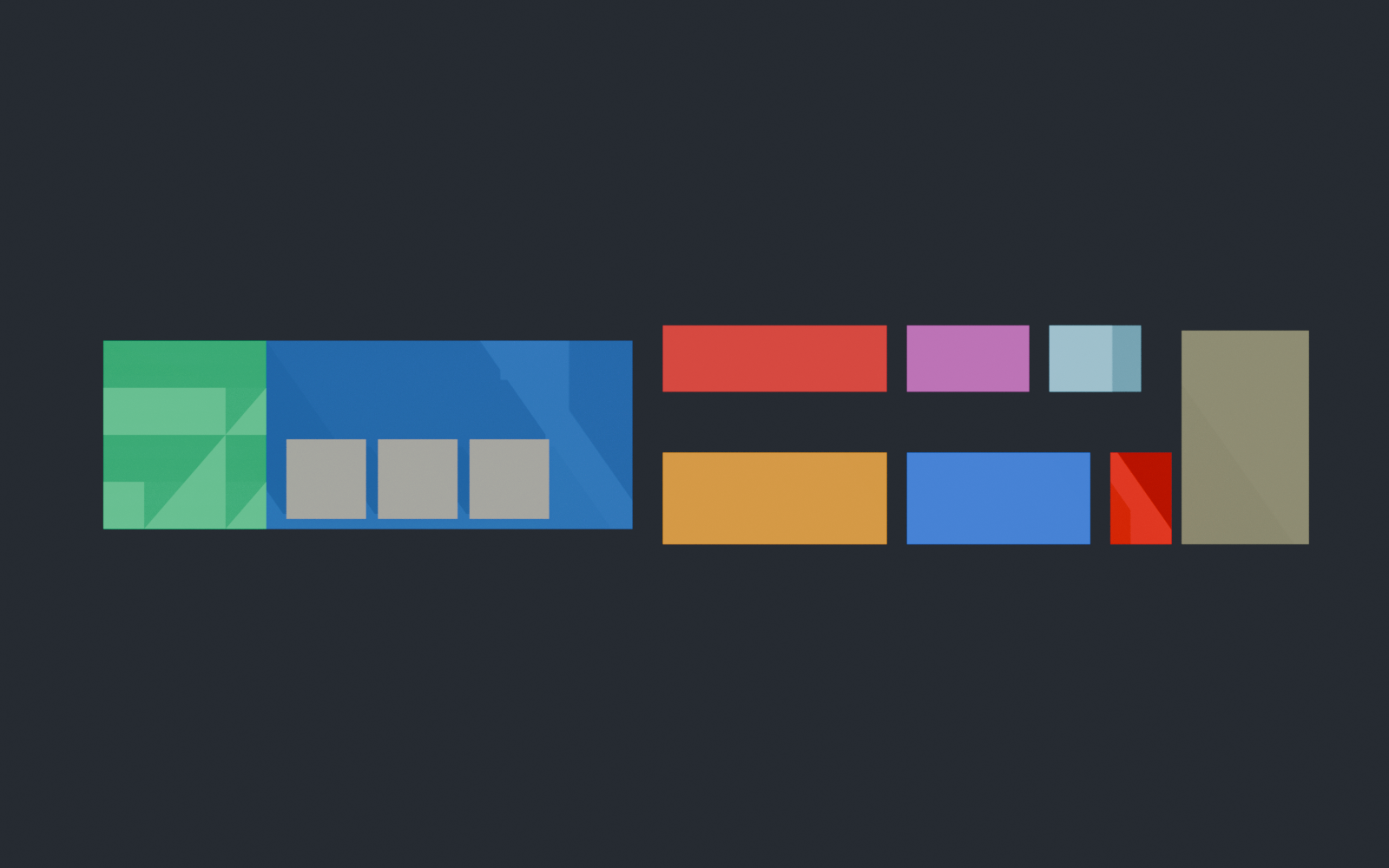

deployed top — Deployed floor plan — wing envelopes flanking the container

Pipeline: cad/export_visual.py re-uses the exact claims() the tests gate, exports colored .glb → blender/render_station.py (Cycles CPU, headless) renders. Visuals are presentation of the source of truth, never a separate model (CLAUDE.md visual-lane rule).

Interior zones (stowed state, 17 solids)

zone	origin x,y,z (mm)	size (mm)	mass (kg)
container_shell	0, 0, 0	12192 × 2438 × 2896	4,800
drone_bay	300, 300, 300	5200 × 1850 × 1400	900
dock_cell	300, 300, 300	1600 × 1850 × 1400	350
chemical_tanks	5800, 150, 150	2200 × 900 × 1500	1,900
water_tank	8200, 150, 150	1800 × 900 × 1600	3,200
battery_bank	5800, 1650, 150	2200 × 650 × 1700	1,400
inverter_cabinet	8200, 1650, 150	1200 × 650 × 1800	450
hvac	9600, 1650, 150	900 × 650 × 1600	280
fire_compartment	10200, 150, 150	600 × 900 × 1200	150
service_area	10900, 150, 150	1250 × 2100 × 2600	100
drone_slot_0	2100, 400, 350	780 × 780 × 550	24
drone_slot_1	2100, 400, 1000	780 × 780 × 550	24
drone_slot_2	3000, 400, 350	780 × 780 × 550	24
drone_slot_3	3000, 400, 1000	780 × 780 × 550	24
drone_slot_4	3900, 400, 350	780 × 780 × 550	24
drone_slot_5	3900, 400, 1000	780 × 780 × 550	24
solar_stowed	0, 0, 2701	12192 × 2438 × 190	896

Deployed state adds (18 solids)

claim	origin x,y,z (mm)	size (mm)	mass (kg)
solar_wing_left	0, -2400, 2000	12192 × 2400 × 35	448.0
solar_wing_right	0, 2438, 2000	12192 × 2400 × 35	448.0

Solar wings deploy as awnings at 2 000 mm — below the drone-launch cone band (an earlier roof-height layout was rejected by the launch-cone gate).

Independent validation (producer ≠ certifier)

The exported STEP files are re-imported by FreeCAD 1.1.3 (a different geometry kernel path) which re-derives solid counts and bounding boxes and writes a machine-readable receipt — verdict: PASSED, states checked: stowed, deployed, dock_cell, failures: 0.

sources: cad/exports/station_v01_report.json · cad/exports/freecad-validation.json · parameters/container.yaml
